PARKFLYER

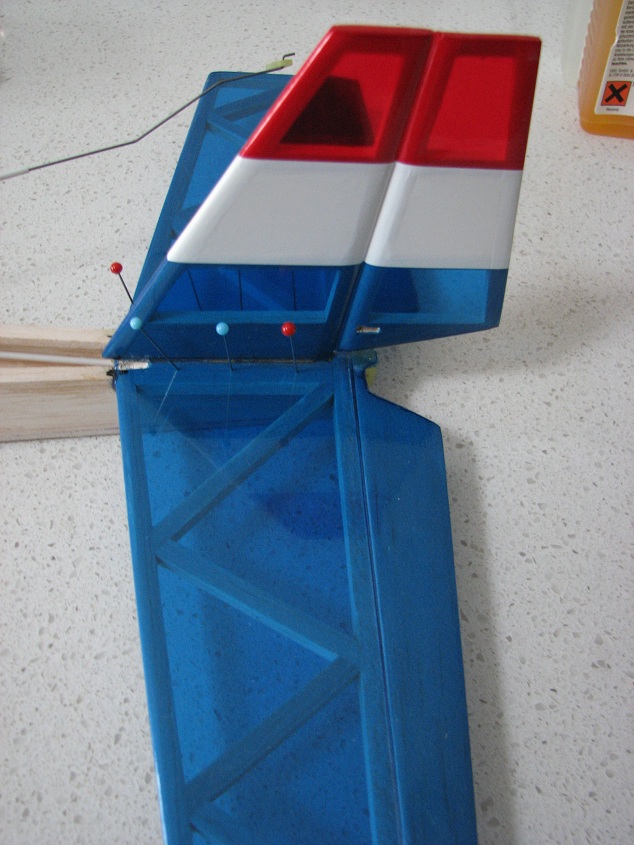

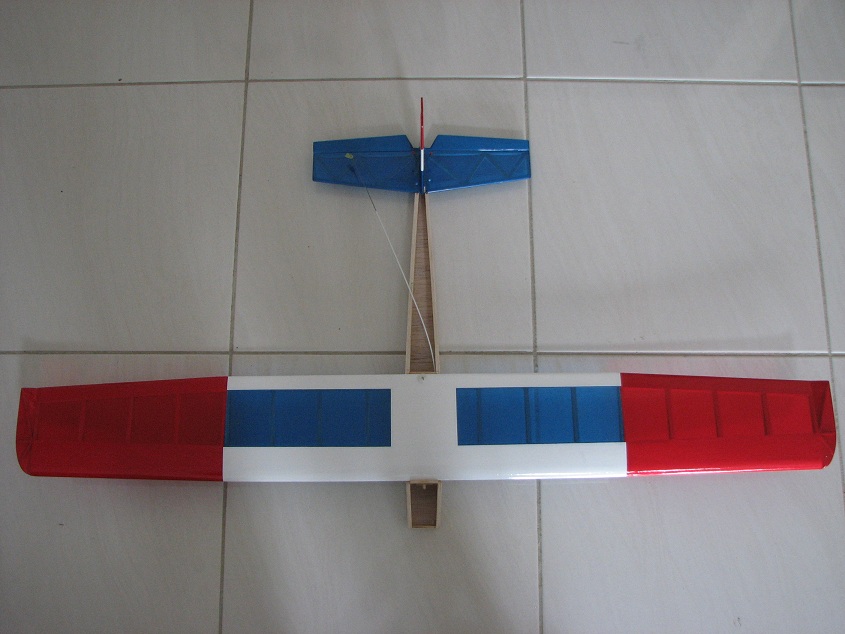

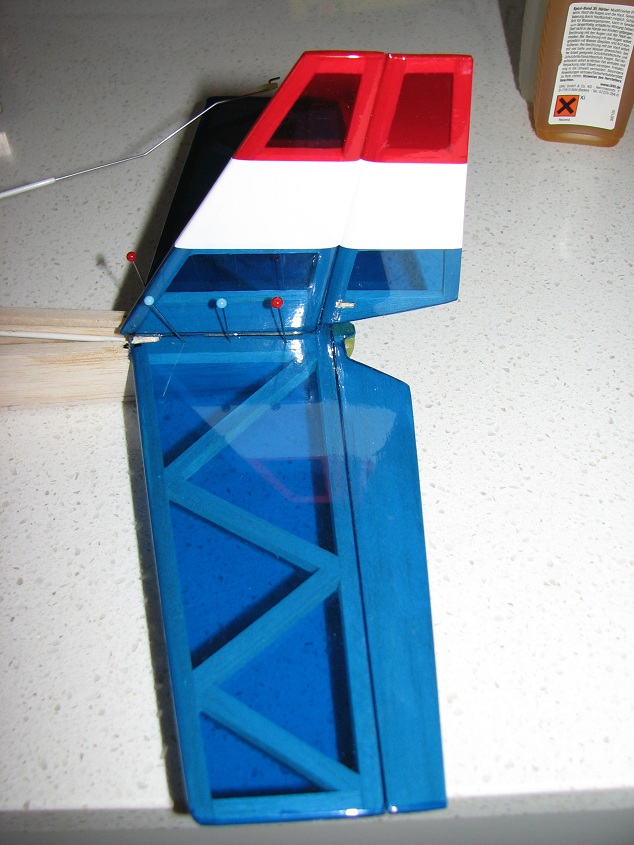

Glue ing the Horizontal Stabilizer onto fuselage. After the horizontal stabilizer is glued into place the pushrod
IMG_3217 IMG_3218 IMG_3219

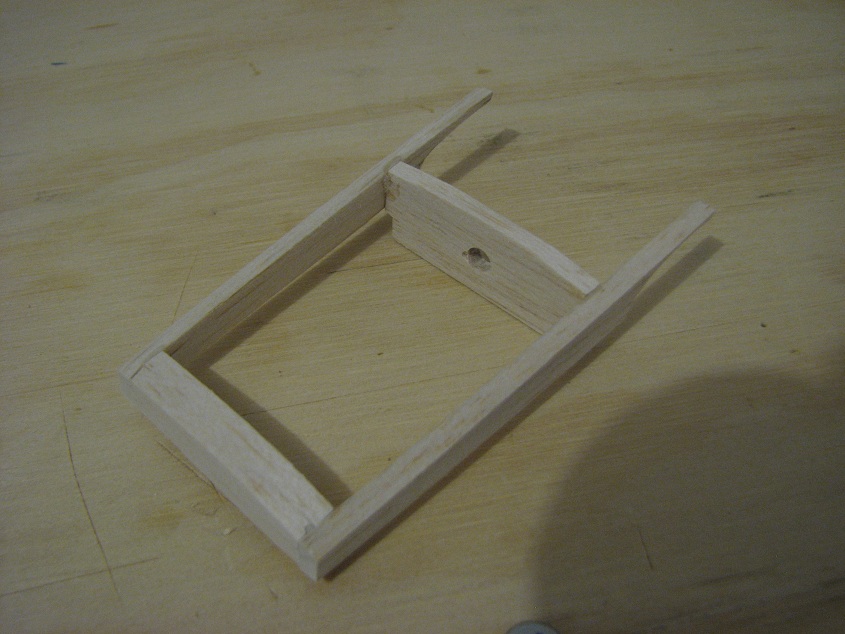

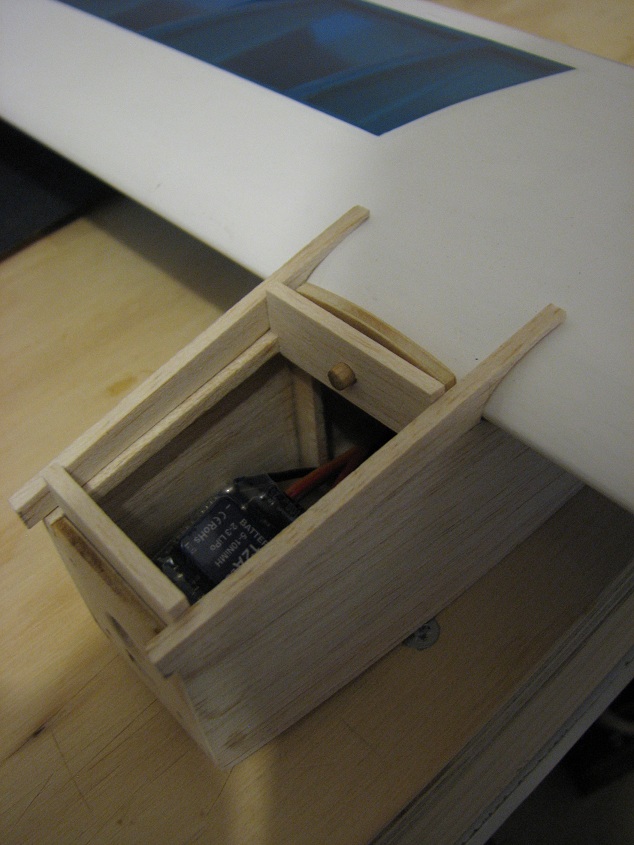

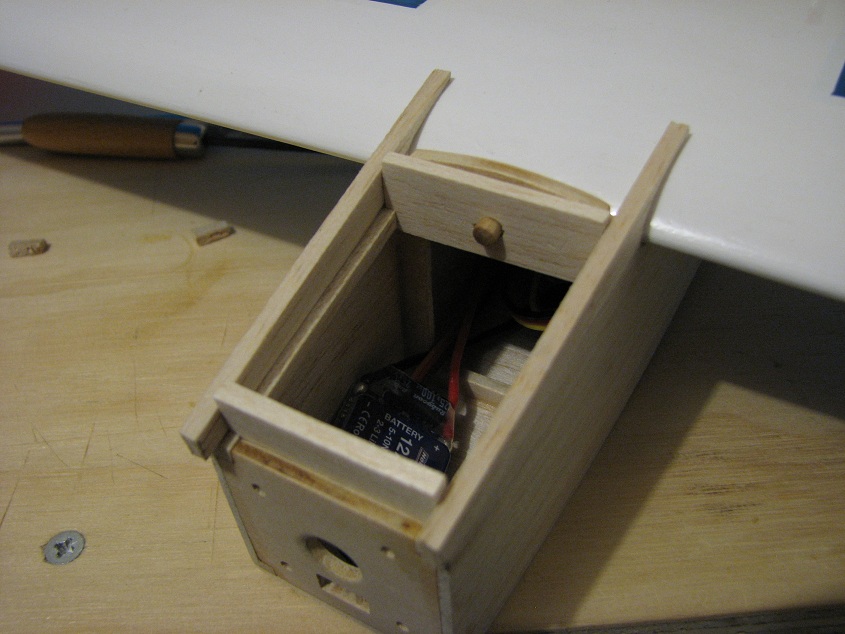

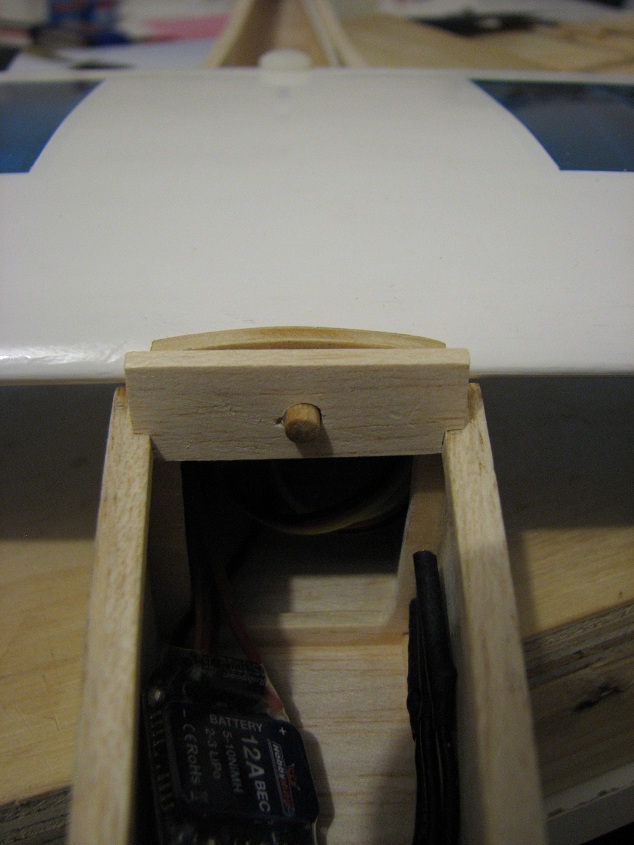

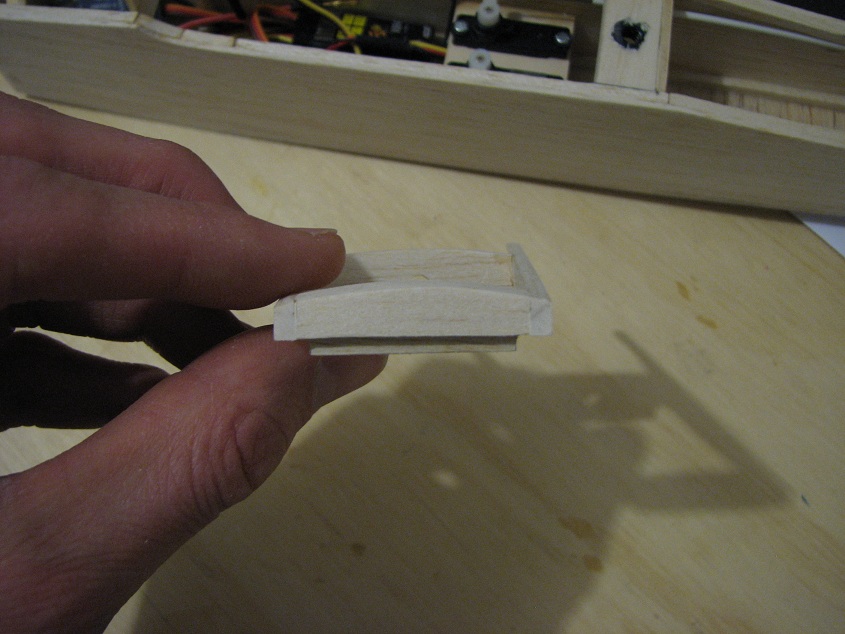

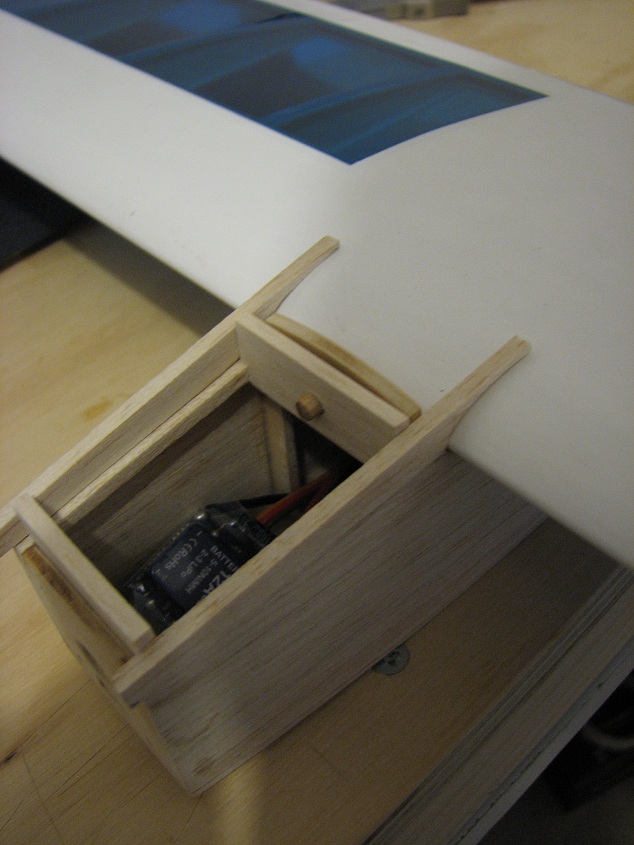

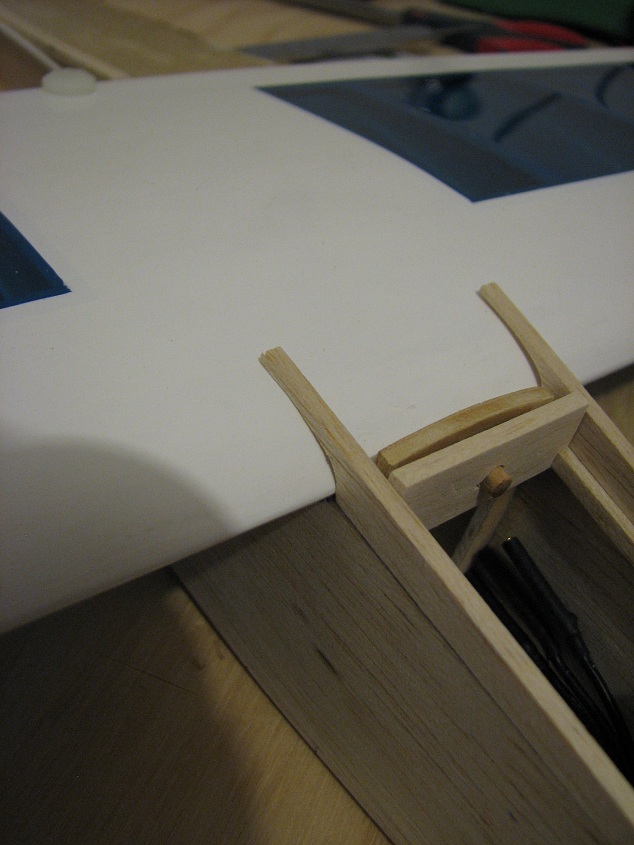

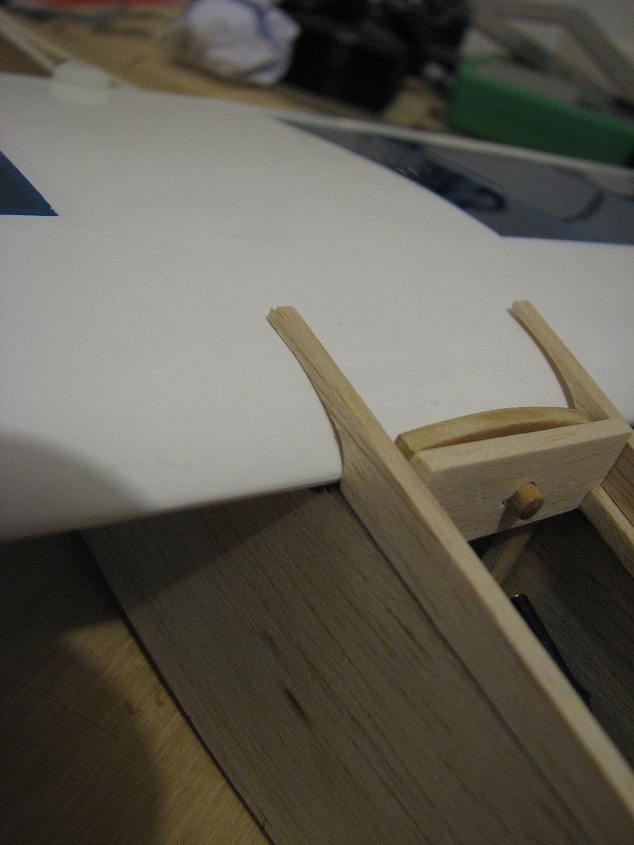

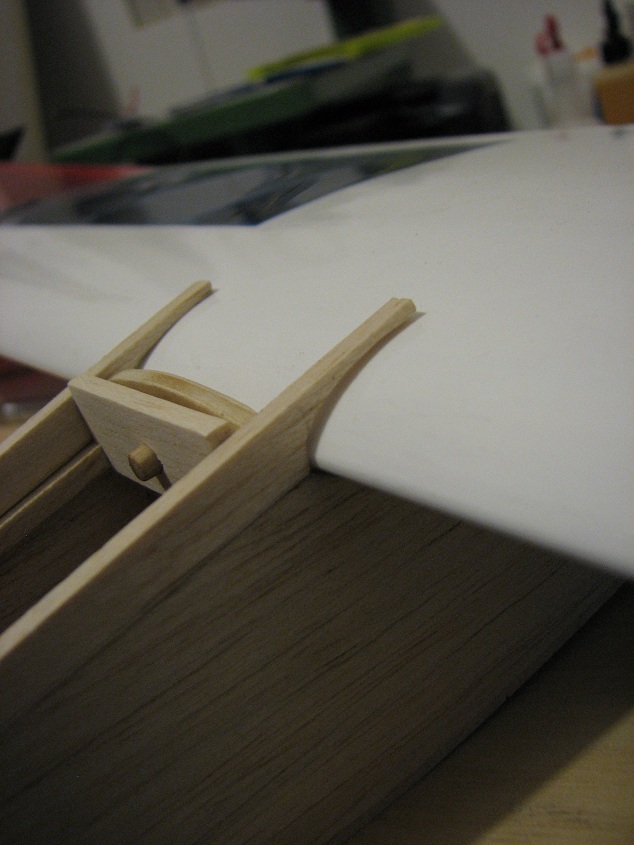

that controls the rudder can be glued to the rudder section. Make sure that all servo positions are set to neutral before glue-ing. Having this in place we can make the canopy. Aim is to make a removable canopy to enable easy access to the motor. The canopy will be hold in place by the mainwing. The pictures below show the construction of the canopy.
IMG_3225 IMG_3226 IMG_3227 IMG_3228 IMG_3229 IMG_3230 IMG_3231
IMG_3232 IMG_3233

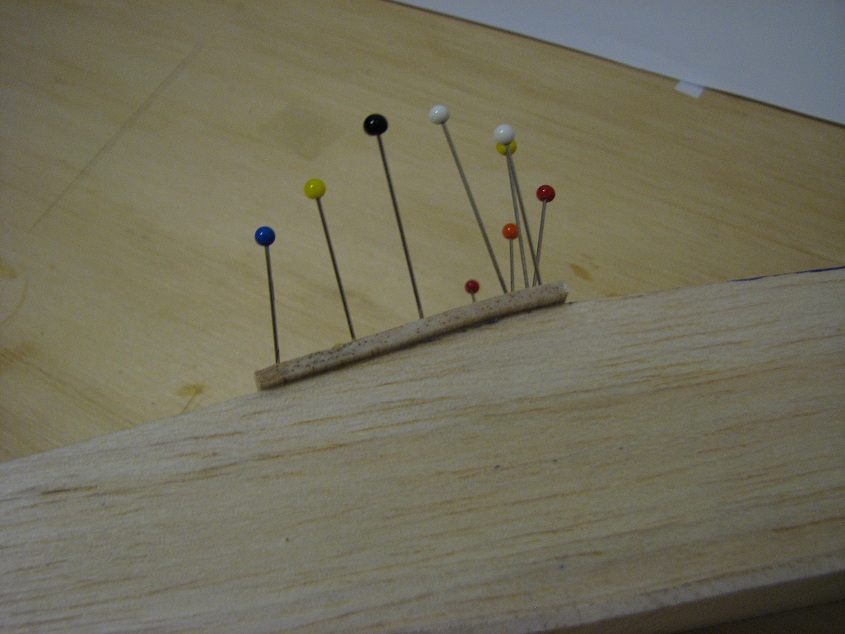

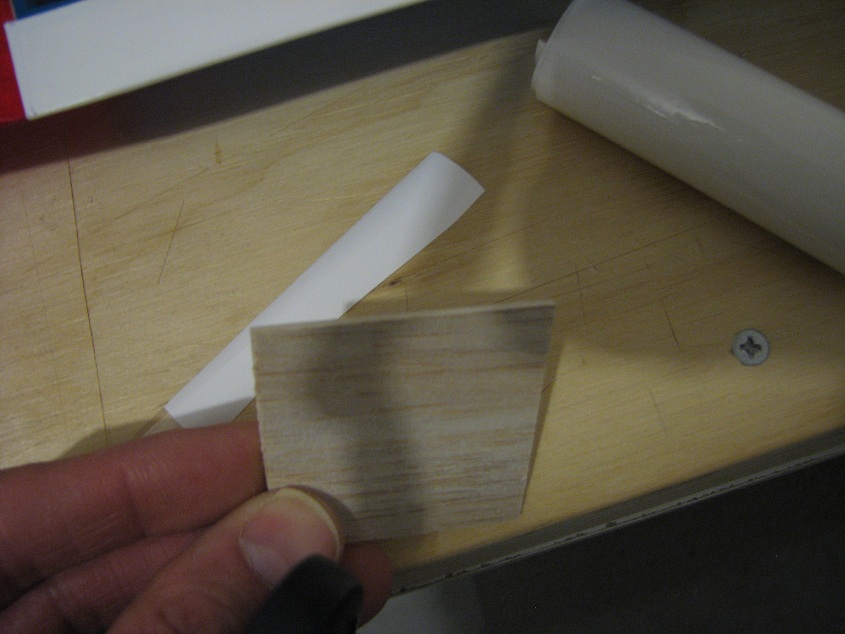

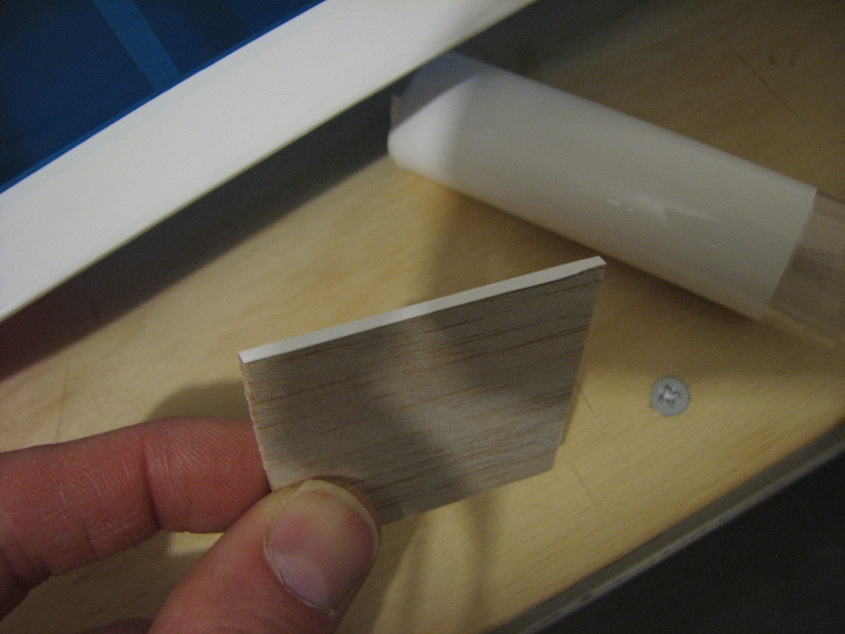

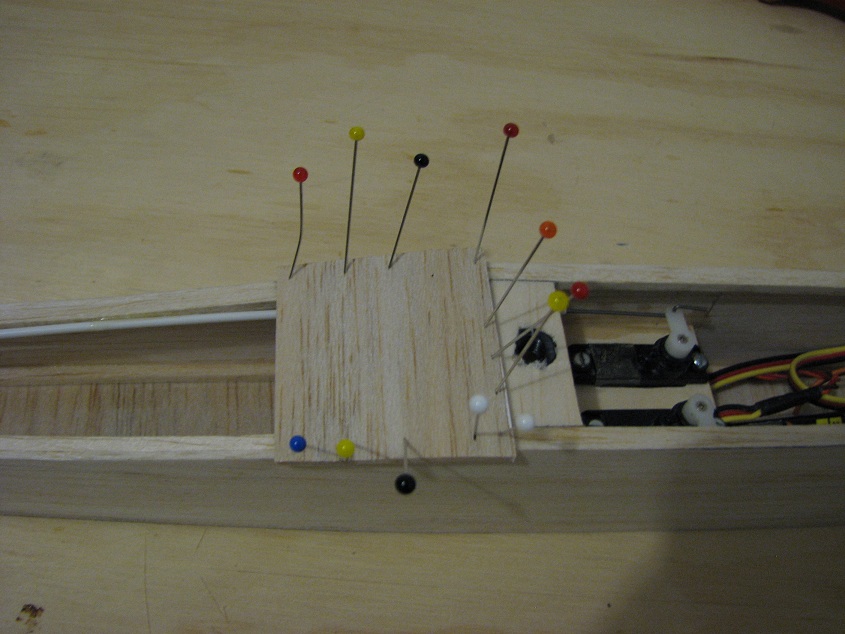

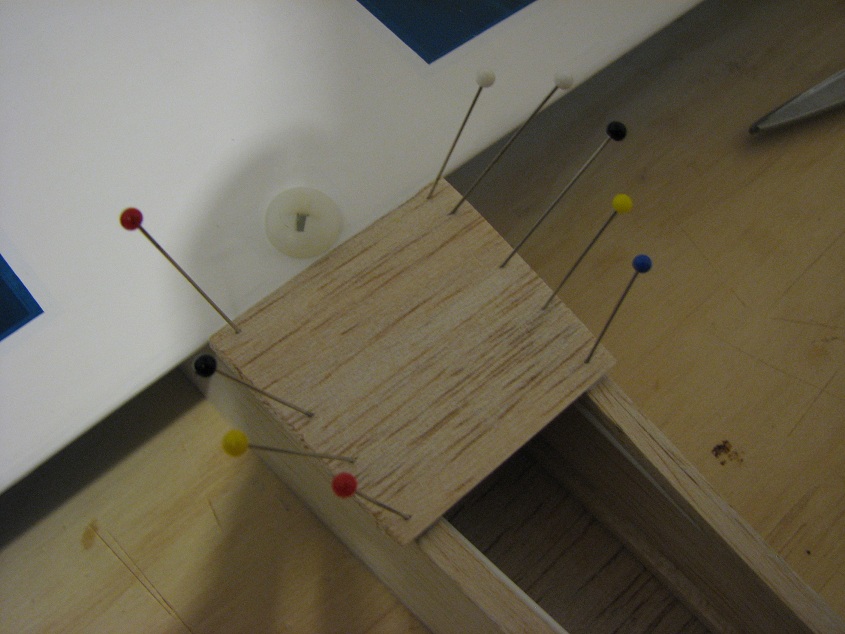

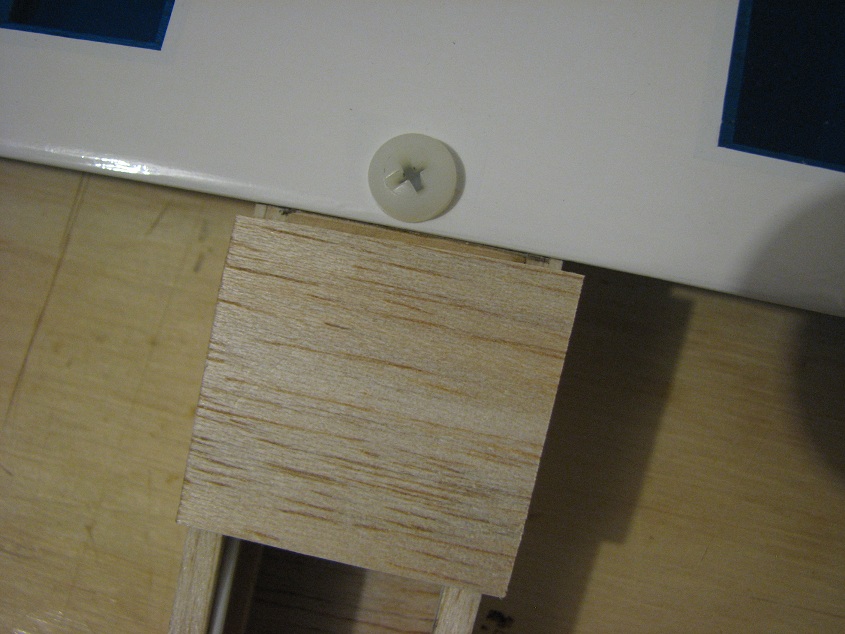

The fuselage will be covered with 2mm balsa wood. To make sure the main wing will not interfere with any cover material i start with applying a small piece of cover material to this section of the fuselage. Finally the rest of the fuselage is covered with 2mm balsa wood. Refer to the pictures below:
IMG_3234 IMG_3235 IMG_3236 IMG_3237 IMG_3238 IMG_3239
