TELEMETRY
STEP 2

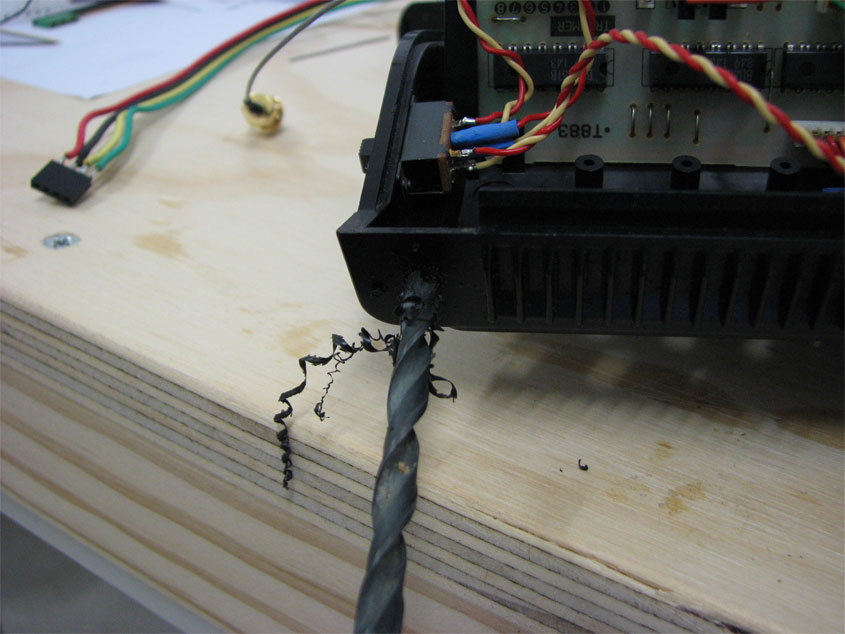

Drill a hole in the housing to fit the antenna
Drill a hole in the housing to fit the antenna
STEP 3

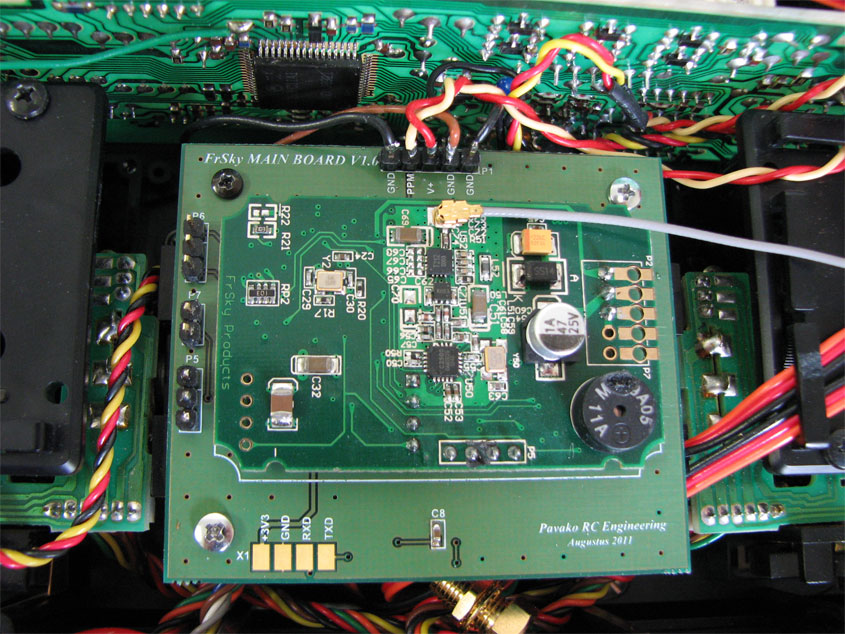

Fit FrSky mainboard
Fit FrSky mainboard
STEP 4

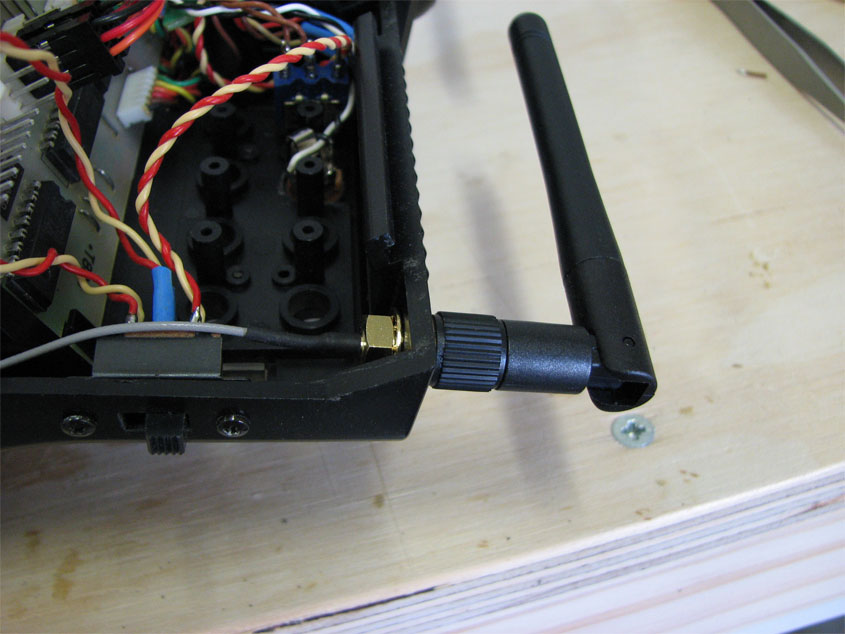

Fit antenna into place
Fit antenna into place
STEP 5

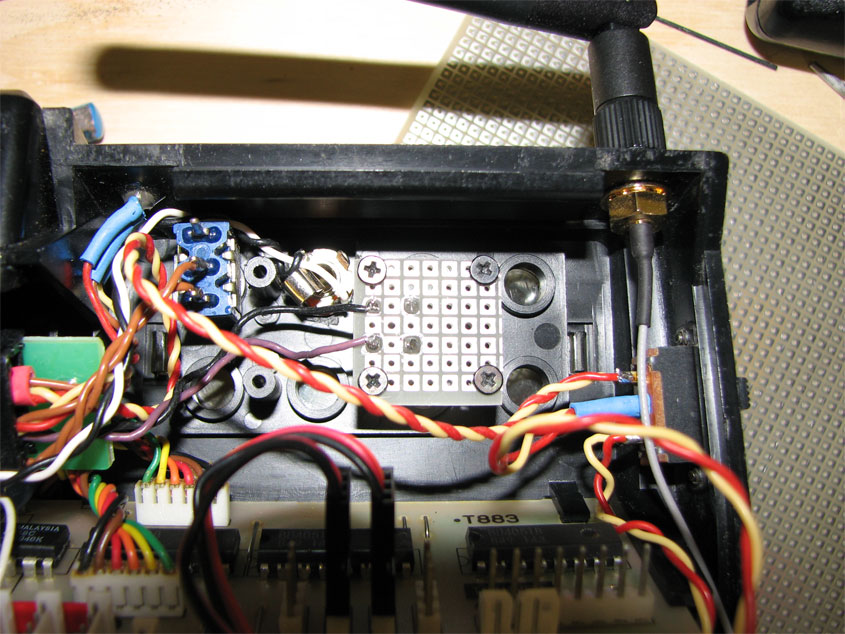

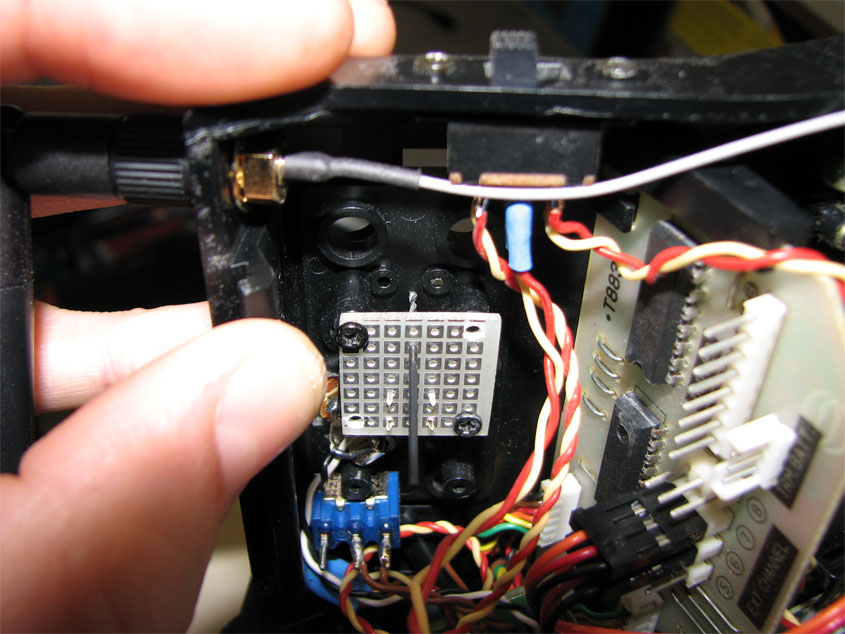

I've replaced the control panel PCB with a smaller one that could be fitted behind the front plate of hte transmitter. To align the switch and the LED I mounted a small PCB on the standoff and used a small drill to center the final holes.
I've replaced the control panel PCB with a smaller one that could be fitted behind the front plate of hte transmitter. To align the switch and the LED I mounted a small PCB on the standoff and used a small drill to center the final holes.
